FOAM MICROCELLULAR MOULDING®

Foam Microcellular Moulding banner

Foam Microcellular Moulding (FMC) Process

More and more plastic components need mechanic resistance and weight reduction.  Using Negri Bossi’s experience in gas injection, we have developed a solution which reduces the component weight, increases the mechanical properties and enhances the chemical quality of the material.

This application produces moulded material in a microcellular form and is available for both thermoplastics and liquid silicon rubber (LSR).

FMC Idea

Simplicity

Simplicity is the key word. The primary goal was to find a solution where there were no major changes to the base components of the machine whilst simultaneously obtaining a microcellular result via a reliable and repeatable process, configurable to the product’s needs.

Another challenge was to apply this process to all Negri Bossi’s existing machines, not only the current series but to those already installed at our customers.

Advantages

  • Weight Reduction: less material used
  • Viscosity melt reduction during injection phase
  • Clamping force reduction for the piece production
  • Cycle time reduction
  • Improved dimensional moulding control

What we can achieve with FMC

Scanning electron microscope (PA66)

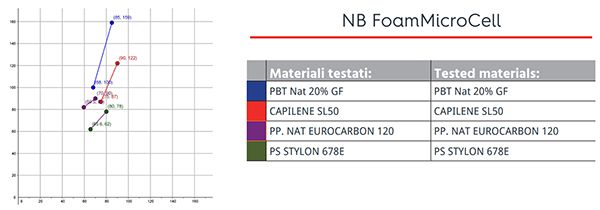

Scanning electron microscope (PA66)NB Foam Microcell Test table

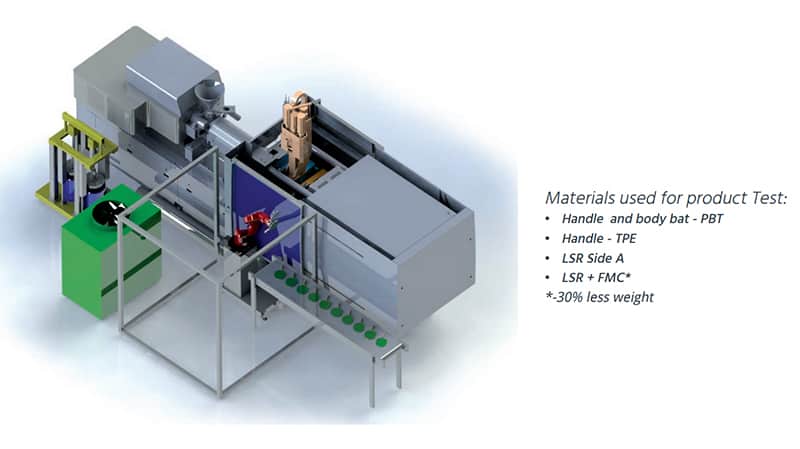

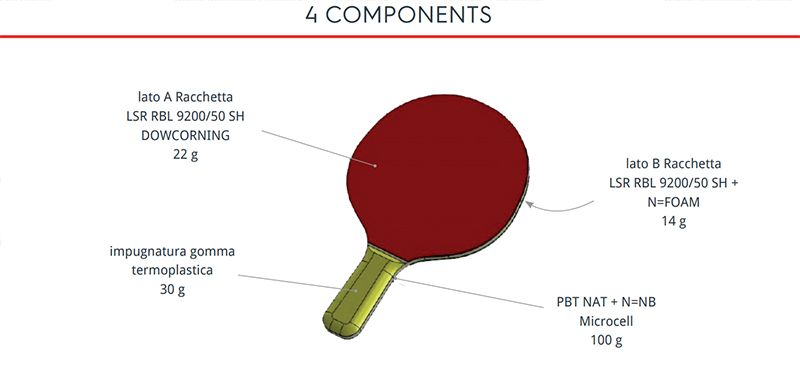

foam-microcellular-moulding-example-table-tennis-batmaterials used for product test



FoamMicroCell Equipment

FoamMicroCell Equipment

FMC® Negri Bossi System includes:

  • Nitrogen Bottles
  • Proportional control valve
  • Special profile Negri Bossi screw
  • Pneumatic / hydraulic nozzle
  • Interface Software

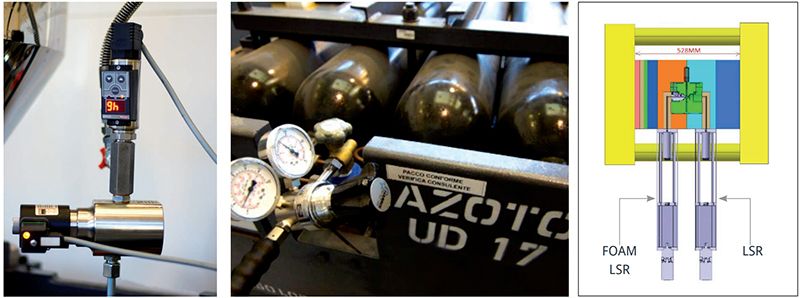

Valve Regulator
Valve Regulator

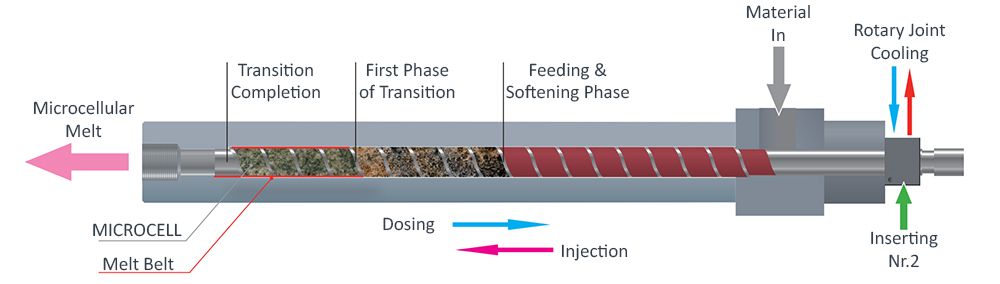

How FMC Works

How FMC Works

Foam Microcellular Moulding processNegri Bossi FMC® system doesn’t have dosing limits, the gas is injected directly into the screw which allows you to use the entire dosing stroke, so the user can use a standard chamber rather than be bound by the dose. This means a melt can be obtained with an external solid layer and an internal microcellular structure: this is achievable thanks to gas insertion in the screw during the moulding cycle. This technology is available for a wide range of materials.

Applicable Models

APPLICABLE MODELS

EOS sP injection moulding machine side view

EOS sP


Markets Served



  • General Small Size Parts
  • Medical
  • Automotive
  • Construction
  • Industrial
  • Appliance
  • Household
  • Aerospace
  • Electronic & Telecomm
  • Technical Moulding
canbio-sT-injection-moulding-machine-side-view

CANBIO sT


Markets Served



  • General Small & Medium Size Parts
  • Automotive
  • Construction
  • Industrial
  • Appliance
  • Household
  • Aerospace
  • Electronic & Telecomm
  • Technical Moulding
  • Packaging
  • Food & Beverage
  • Containers
  • Closures
BIPOWER iP injection moulding machine

BIPOWER iP


Markets Served

  • General Large Size Parts
  • Automotive
  • Construction
  • Industrial
  • Appliance
  • Household
  • Aerospace
  • Technical Moulding
  • Containers

NOVA-eT-injection-moulding-machine-side

NOVA eT


Markets Served

    • Medical
    • Caps & Closures
    • Packaging
    • Optical Moulding
NOVA sT injection moulding machine

NOVA sT


Markets Served

  • General Medium and Large Size Parts
  • Automotive
  • White Goods
  • Construction
  • Contract Moulding
 NOVA iT injection moulding machine

NOVA iT


Markets Served

  • Material Handling
  • Packaging
  • IML
  • Caps & Closures
